Portable Welding and Fugitive Dust Filtration

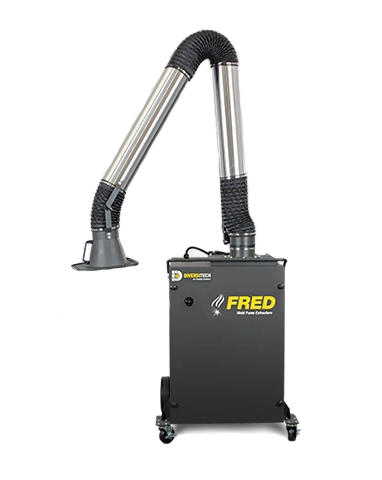

Diversitech FRED Jr.
Ensure safe breathing zones for your workers with the FRED Jr. Portable Fume Extractor. Remove weld fumes, dust, and other airborne contaminants right as they are produced with the FRED Jr. This portable welding fume extractor is designed for easy transport and positioning to provide your space with a mobile air filtration system.
Equipped with a Merv 15 rated Nanofiber filter that captures airborne contaminants as small as 0.5 micron, cleaner air is guaranteed when you use the FRED Jr. portable fume extractor. The FRED Jr.’s flexible 10’ externally articulated capture arm allows for easy positioning, so you can remove contaminants at the source for max capture efficiency.
Outperforming its competition, the high suction and capture velocity of the FRED Jr. portable fume extractor enable it to perform effective dust collection and filtration further from the hood.
Features
- Flexible 10’ externally articulated capture arm
- 1.5 HP TEFC motor producing 1200 CFM at the hood.
- 26” easy-to-service Nanofiber filter (MERV 15)
- Rotary starter with 15’ power cord & casters
- Complies with OSHA guidelines for controlling weld fumes

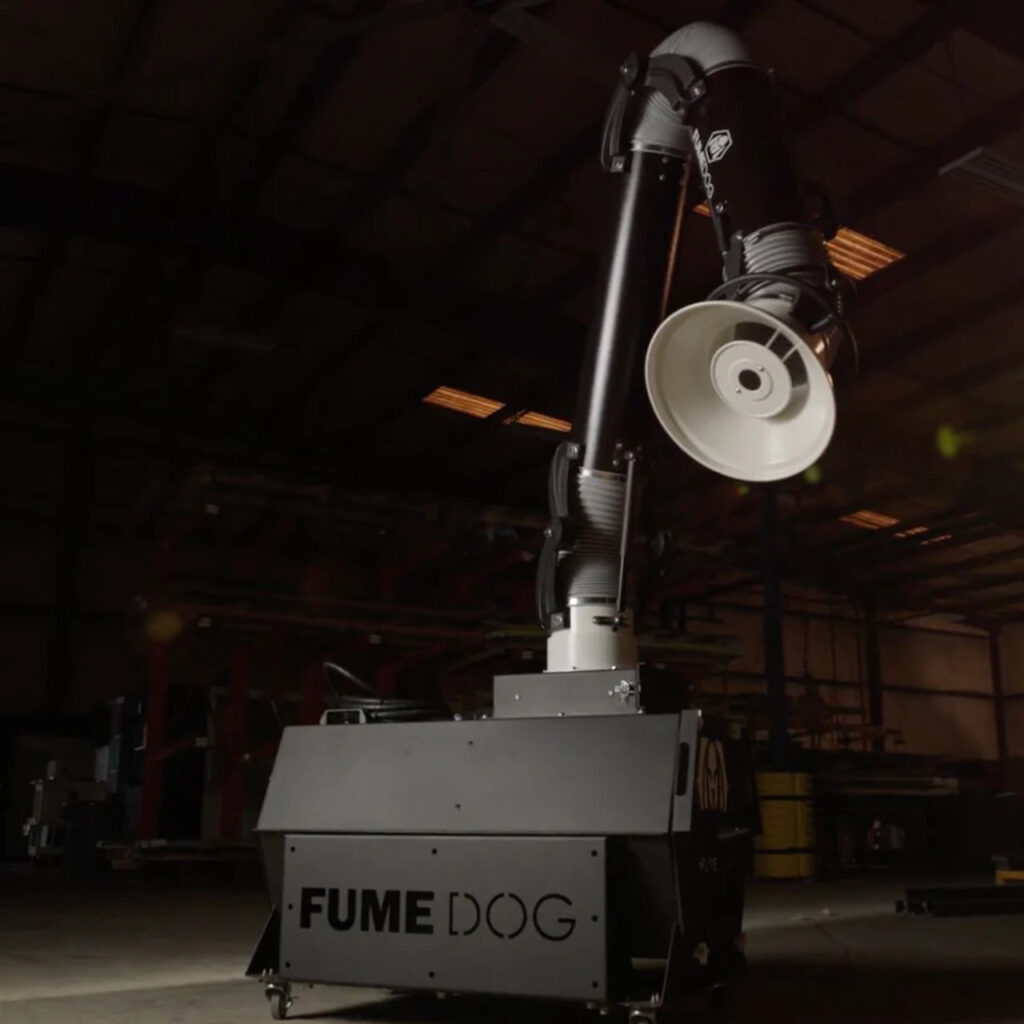

Fume Dog Portable Fume Extractor
Eliminate harmful welding fumes and smoke at the source with the Fume Dog PT Portable Weld Fume Extractor, featuring best in-class draw distance and performance.
Performance: With 1,200 CFM and an 8″ diameter fume arm, the Fume Dog PT Portable Weld Fume Extractor consistently outperforms competitive units with a draw distance of nearly two feet so you don’t need to constantly re-adjust placement.
Cleaning System: With a unique internally rotating cleaning wand utilizing a continuous air stream the filter life on a Fume Dog PT is about 6-7 times longer than traditional reverse pulse systems used on competing portable weld fume extractors.
Tool Racks: Tool racks and allow for you to conserve valuable floor space and always have your tools on hand while remaining safe.
Steel Constructed Fume Arm: Powder coated steel fume arms hold up under tough work environments as opposed to the plastic construction many portables use.
Heavy Duty Construction: Rugged 12-gauge powder coated steel construction ensures durability. Made in the USA at our facility in Georgia.

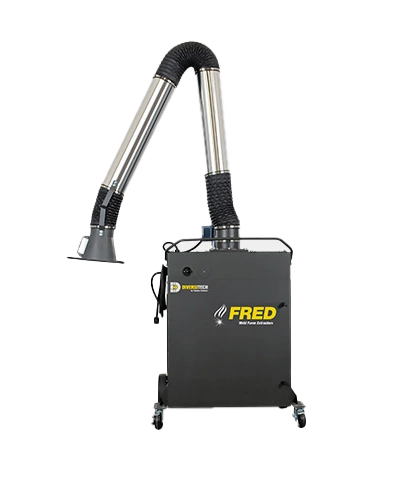

Diversitech FRED SR
The industry standard for eliminating smoke, dust and fumes, the FRED Sr. is a professional grade fume extractor. Capturing contaminants right at the source, the FRED Sr. has a powerful blower featuring a high face-velocity. Equipped with a standard MERV 15 rated Nanofiber filter, this fume extractor can remove particulate as small as 0.5 micron.
The patented Injection Self-Cleaning System (ICS-360) extends filter life expectancy and improves aggregate filter efficiency. Routine service for the FRED Sr. is both fast & easy, reducing total cost of ownership.
Features
- Flexible 10’ externally articulated capture arm
- ICS-360 Injection Self-Cleaning System
- 21” easy-to-service Nanofiber filter (MERV 15)
- Rotary starter with 15’ power cord & casters
- Automatic Filter Cleaning makes service easy
- Compact, portable and easy to operate
- Capture-at-source for cleaner air
- Complies with OSHA guidelines for controlling weld fumes

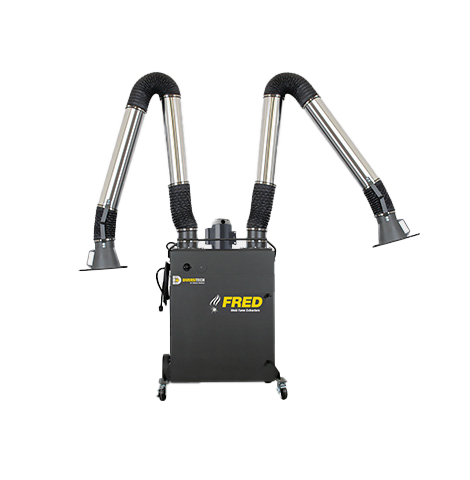

Diversitech FRED SR II
A professional welding smoke extractor, the FRED Sr. II Dual-Arm Portable Fume Extractor is the industry standard for eliminating smoke, dust, and fumes from the air. A 2500 CFM, 5HP blower ensures a high face-velocity across two independently movable capture arms. Equipped with our standard MERV 15 rated Nanofiber filter, FRED Sr. II can remove particulate matter as small as 0.5 micron from the surrounding air of welding stations and other industrial operations.
The patented Injection Self-Cleaning System (ICS-360) extends filter life expectancy while improving aggregate filter efficiency. Routine service is made faster and easier compared to manual cleaning systems, reducing total cost of ownership for our portable fume extractors.
Features
- Dual, 10’ externally articulated capture arms
- ICS-360 Injection Self-Cleaning System
- 21” easy-to-service Nanofiber filter (MERV 15)
- Rotary starter with 15’ power cord & casters
- Automatic Filter Cleaning makes service easy
- Compact, portable and easy to operate
- Capture-at-source for cleaner air
- Compliant with OSHA guidelines for controlling weld fumes
Diversitech FRED SR C
This professional grade fume extractor is the industry standard for eliminating smoke, dust and others unbreathable from the air. A 2500 CFM, 5HP blower ensures a high face-velocity across two independently movable capture arms, removing particulate as small as 0.5 micron with our standard MERV 15 rated Nanofiber filter. The patented Injection Self-Cleaning System (ICS-360) reduces the FRED SR C’s total cost of ownership by extending filter life expectancy, improving aggregate filter efficiency, and making routine service faster & easier.
Features
- Flexible 10’ externally articulated capture arm
- ICS-360 Injection Self-Cleaning System
- 21” easy-to-service
- Nanofiber filter (MERV 15)
- Automatic Filter Cleaning makes service easy
- Compact, portable and easy to operate
- Capture-at-source for cleaner air
- Complies with OSHA guidelines for controlling weld fumes

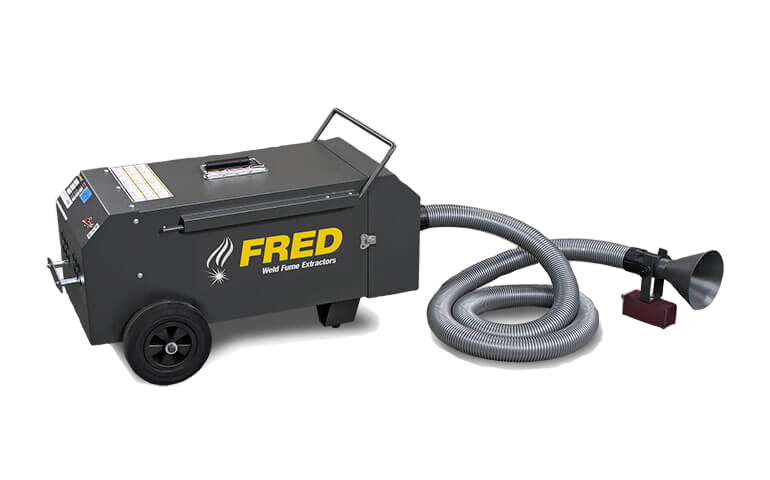

FRED Mini-Vac II
The FRED Mini-Vac II from Diversitech is the industry’s most powerful, reliable, and convenient-to-use portable fume extractor. With high and low modes for maximum performance, the dual-motor design allows the welder to switch on just one motor for typical light duty work, and switch on a second motor for more demanding applications.
The ability to switch between high and low modes empowers the operator to choose between a higher capture range and less time spent re-positioning with two motors running and a quieter running, lower capture range with one motor running.
Features
- Designed for light-medium duty welding
- Attaches quickly to MiG Fume Extraction Guns
- Lightweight, exceptionally portable design
- Nanofiber MERV 15 Filter Cartridge
- Magnetic nozzle base for secure nozzle placement
- Filter service indicator
Portable Volatile Organic Compounds (VOCs) Fumes and Odor Filtration

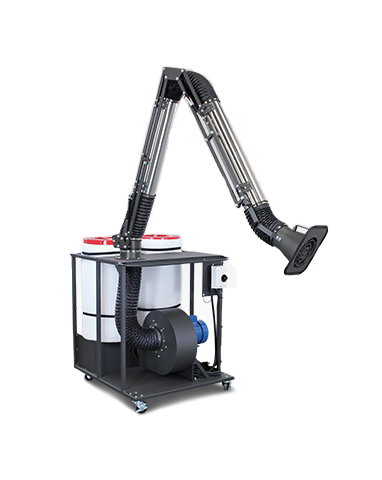

FRED Carbo
Volatile Organic Compounds (VOCs) fumes and odors present a serious workplace hazard that need to be captured and filtered with a portable fume extractor. The Fred Carbo is designed to extract VOC fumes and odors and prevent them from entering an operator’s breathing zone.
The FRED Carbo’s high porosity activated carbon granules are specially designed to adsorb most industrial VOC fumes. The carbon cartridge is reversible allowing you to utilize 100% of the available media to remove airborne fumes and is available in five standard weight configurations.
The extractor arm’s pantograph style articulation ensures ultra-smooth repositioning and protects the arm’s components from wear and tear. The high performance blower develops a powerful face velocity to ensure fumes are eliminated from the workspace.
Features
- Flexible 10’ externally articulated capture arm
- HP TEFC motor producing 650 CFM at the hood
- Carbon canisters
- 15” power cord & casters
- Complies with OSHA guidelines for controlling VOCs
Portable Paint Fume Extraction

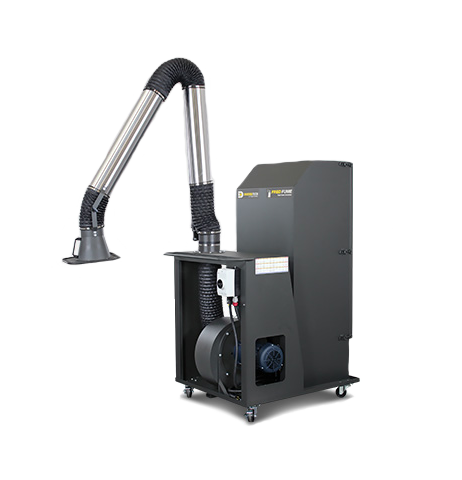

FRED Overspray Master™
The FRED Overspray Master™ by Diversitech is a portable paint fume control system that is designed to capture and filter overspray from touch up painting. The compact design saves time and money by allowing touch paint work to be done safely where required.
The portable paint fume extraction unit includes a hood mounted paint pocket arrestor prefilter, four MERV 11 primary filters and 2 extruded carbon afterfilters for VOC fumes. The filters in the unit comply with the NESHAP 319 standard for toxic chromate coatings and primers, commonly found in aerospace painting applications.
The Overspray Master comes with a 10’ XA2 Series capture arm, with external pantograph style articulation ensuring ultra-smooth repositioning and protecting the arm’s components from wear and tear. Available arm lengths include 6.5’,10’ 13’ and dual arm configurations.
Features
- Flexible 10’ externally articulated capture arm
- 1200 CFM of Airflow
- 1.5 HP, 120v/1/60hz blower
- 1 x Paint pocket filter on hood
- 4 x MERV 11 pleated panel filters
- 2 x 24”x 24”x2” carbon afterfilter
- 15” power cord & casters
- Complies with with NESHAP 319
- 6.5’, 10’ or 13’ capture arm
Need To Order Portable Fume Extractors?
The team of dust collection specialists at Aircoast Industrial Solutions are here to help you find the ideal system for keeping your workplace air contaminant-free. Contact us to discuss your workplace needs and we will help you find the perfect solution.
