Industrial Cartridge Dust Collectors
Aircoast Industrial Solutions is a distributor of AAF cartridge dust collectors, including these models. Note: We also work with other brands and models.
AIVY Compact™
A Plug & Play compact dust collector thatincludes everything necessary for an agile,easy commission and start-up. Available indifferent sizes for air flows between 600 and 12,000 CFM, and NFPA compliant options for handling combustible dusts.
Designed to provide a highly intuitive user experience and simplified maintenance. It minimizes abrasion of the filters and improves the distribution of the dust in the dirty plenum, thanks to its larger air inlet surface that reduces air inlet speed. The result: longer life cycle and greater filtration capacity.
AIVY Compact™ has been designed to meet the needs of any industry and application with several options that can be added to the Plug & Play configuration depending on specific customer’s needs.
AIVY RC™
AAF’s AIVY RC™ is a modular cartridge dry dust collector highly efficient in a wide range of air flows: from 600 cfm to 80,000 cfm. Adaptable and configurable, it allows increasing the number of cartridges depending on the filtration needs by simply adding additional modules. Used primarily for abrasive applications.
- More simplicity on maintenance – As a result of its innovative door system.
- Significant energy savings – Features up to 20% of energy consumption reduction.
- Enhanced filtration efficiency and improved performance – As a result of its pioneering constructive system.
- Adaptable and flexible final configuration – Size, height, discharge system, final layout and optional extras.
- Built-in self-cleaning system and controller – Continuous control of the performance assured.
- ATEX option for potentially explosive atmospheres – Venting panel or relief valve.
AIVY Compact SPK™
The Compact SPK™ is a cartridge dry dust collector designed to meet safety standards required for air filtration in the metal working industry. It features a side inlet for spark reduction applications.
AIVY Compact SPK™ is a Plug & Play dust collector with an integrated spark arrestor, specially designed to meet metalworking industry needs on those applications where sparks are generated. Designed as a compact solution, it integrates all the elements required for an agile, easy installation and start-up, including an integrated fan, electrical panel, dust bin and self-cleaning system.
Available in several sizes, it can handle a wide range of airfows, between 600 CFM and 12,000 CFM, with a smaller footprint than other dust collection systems operating in the same filtration.
AIVY Compact SPK™ incorporates a spark protection component at the inlet of the filtration chamber to reduce risk of hot sparks generated during metal working processes from reaching the filter cartridges.
AIVY Compact SPK™ introduces a new filter support structure that eliminates the need of a mandril to support the cartridges. This new design decreases resistance to clean air passing through the cartridges to reach the clean chamber resulting in a notable improvement in pressure drop reduction.
The removal of mandrils that internally support cartridges enables an easier and quicker operation during cartridge change out. Improved performance as a result of the research and development team’s quest for constant improvement.
AIVY Compact SPK™ incorporates a spark protection component at the inlet of the filtration chamber to reduce risk of hot sparks generated during metal working processes from reaching the filter cartridges.

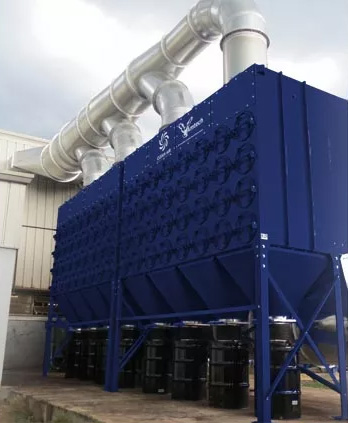

Clean Air Amtech ATH Horizontal Cartridge Collector
Innovative Downflow System: Our unique design, featuring horizontally positioned filters and unit-mounted blowers, stands out as a market leader. It’s not just about collecting dust; it’s about doing it in the most efficient way possible.
Optimized Cleaning with Goyen Venturi Assist Design: Experience the pinnacle of reverse jet pulse cleaning. This design not only ensures better contaminant release but also significantly enhances filter life.
Exceptional Filtration Efficiency: Our high-efficiency cartridge filters boast a 99.5% efficiency rating for submicron (0.5) particulate. This means that even the tiniest of particles won’t escape our system. And the best part? The particulate is collected on the outside of the media, ensuring easy maintenance.
Uniform Dust Loading: Thanks to our extra-large circular filters oriented horizontally, dust loading is uniform. This means every part of the filter works equally hard, ensuring efficient cleaning every time.
Extended Filter Life and Reduced Maintenance Costs: With our reverse jet pulse cleaning system, not only do you get longer filter life, but you also benefit from decreased maintenance costs. It’s a win-win for your operations and your wallet.

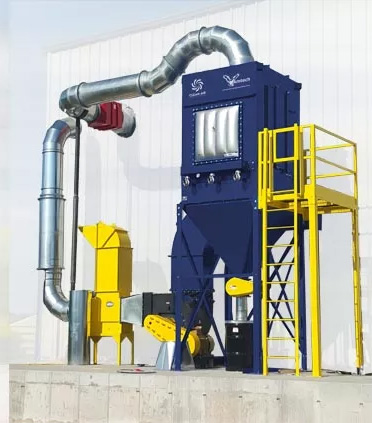

Clean Air Amtech ATV Downflow Cartridge Series
Innovative Downflow/Vertical Technology: Patented design ensures minimal re-entrainment, prolonging filter lifespan.
Controlled Inlet Air Velocity: Air is guaranteed to flow exclusively downward, eliminating any upward or sideways movement. This ensures no disturbance below the filters where the dust has settled, offering efficient cleaning both during operation and shutdown.
Zero Velocity Design: The unique structure ensures no movement at the base of each filter stack. This lets the dust settle freely below the cartridges, effectively eradicating re-entrainment.
High-Quality Cartridge Media: Comprising 80% cellulose and 20% polyester, the cartridges are rich in resin, ensuring durability. They are designed with pleat-lock construction and can withstand temperatures up to 160°F. High-temperature cartridges available for applications that require it.
Dual Dust Management: Effective design ensures larger dust particles find their way to the settling area, while finer particles are efficiently captured by the filters.
Venturi Reverse Pulse Cleaning: Experience enhanced cleaning with the quick pressure release system. This method disperses a burst of compressed air uniformly across the filter, offering superior cleaning efficiency compared to conventional reverse pulse cleaning.
Optimized Pulse Jet Performance: Fine-tuned orifice size and position ensures maximum performance and cost-effectiveness. Choose from four jet pulse cleaning initiation methods to perfectly suit your application.

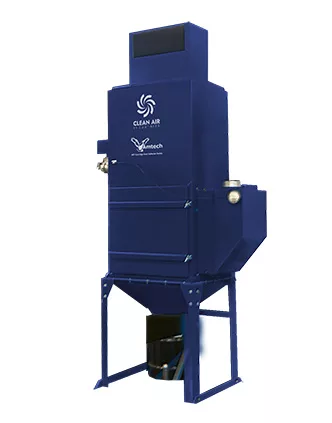

Clean Air Amtech ADT Dust Collector Series
Efficient, compact design, tailored for uninterrupted operation. Seamlessly handle a vast spectrum of dust applications with the Amtech ADT Dust Collector Series by Clean Air Industries, ranging from 1,000 to 3,000 CFM.
Advanced Up-Flow System: The unique design features vertically positioned filters, ensuring zero particulate re-entrainment. Extended filter longevity and optimal performance.
Venturi Assist Excellence: Experience the pinnacle of reverse jet pulse cleaning. Venturi assist design enhances contaminant release and prolongs filter life.
Unparalleled Filter Efficiency: Achieve a staggering 99.5% efficiency at 0.5 microns, ensuring the cleanest, safest environment.
Customized Filter Options: Tailor your experience with diverse filter cartridge options. Fire retardant filters and washable spun board filters are available.
Clean Air Liberty Series Weld Cell
The Clean Air Liberty Weld Cell Evo is your compact robotic weld cell solution with some of the most advanced controls available.
Compact: With a footprint of only 42″ x 46″ (slightly smaller than pallet) the WeldCell Evo allows you to get the maximum performance with minimum floorspace.
Modular Flat Hoods: By using flat hoods over your weld cell we minimize height required and allow you easily have a custom sized hood without custom prices.
EVO Controls: Receive automatic status and maintenance notifications via app on your phone or desktop as well as email. PM scheduling becomes a breeze when your equipment tells you it needs attention. You can also schedule automatic on/off cycles when you know the robot will be running making it an almost “no touch” system that will keep you and your people safe.
Quick Installation: Tool As with all labor costs, quicker is less expensive. The WeldCell Evo comes with pre-wired controls allowing for quick installation. Just set the collector and hood, run a little duct, run power, and you are ready to go. Place your order and be up and running within safety compliance quickly.
Made in the USA: From cutting the steel to welding and powder coating, all Liberty WeldCells are manufactured in Rome, Georgia.
AIVY MiniPulse™
AIVY MiniPulse™ is the ideal air filtration solution for filtering small airflows in a safe and efficient way. A small and easy to operate cartridge dust collector for industrial applications with airflows below 1,000 m3/h.
Designed to ensure customer’s autonomy on installation and maintenance, it provides an extremely simple user experience, especially on cartridge change-out.
AIVY MiniPulse™ is a cartridge dry dust collector designed to handle low airflow rates up to 600 CFM in small industrial applications. A Plug & Play solution that integrates all the components required for an immediate, quick and simple commission and start-up. Its presence at the plant is discrete but noteworthy at the same time.
With a compact design and a small size, it provides a solution for dust collection on small applications and areas with limited space or access difficulties. Its excellent seal ensures a cleaner and safer workspace while capturing and filtering dust generated from manufacturing processes. AIVY MiniPulse™ can also return recovered product to the process if needed. Small, light and easy to handle, AIVY MiniPulse™ offers the utmost adaptability to the customer’s needs and the application.
Vibra Shake™ Cartridge Dust Collectors
The Vibra Shake™ cartridge collector is a self-cleaning collector for intermittent applications where high collection efficiency is essential, such as reclaiming precious metals.
Some features include:
- Two-stage cartridge for high-efficiency filtration on both coarse and fine dusts
- Compact, self-contained collector design allows placement flexibility and saves floor space
- Pre-assembled for easy, low-cost installation—no need for compressed air
- Selection of inlet size and location for installation flexibility
- Recirculates filtered air saving heating and cooling costs
- Provides a cleaner work environment for maximum productivity
- Reduces plant maintenance costs
Vibra Shake cartridge filter features proprietary Pleatloc™ corrugation that assures uniform pleat spacing for better self-cleaning and longer filter life.
- Filter screen captures coarse and fibrous particles
- Sub-micron particulates pass through the filter screen and are trapped by the inner layer of media
- Galvanized outer liner protects filter media
- Easy filter change out for quicker maintenance
How Do Cartridge Dust Collectors Work?
Cartridge filters are contained within a housing, through which dirty air flows, running through the filters, removing particulate from the air. The filters are made from pleated material, and dust is collected on the outside of the filter. Cartridges are either cylindrical or oval in shape, and traditionally, they are supported by a metal or fabric framework.
The filters themselves may be made from a variety of materials, usually with a outer coating designed for the specialized application for which the filter was designed. Some coatings may include oil-resistant coatings, nanofibers, spunbound material, water-resistant coating, or anti-electrostatic coatings.
How do cartridge dust collection systems work? Dirty air enters through an inlet, passing through the filters in the dirty air plenum, where particulate is caught on the outside of the filters. Air is circulated through a drop-out zone, and the clean air moves through a clean air plenum, exiting though a clean air outlet.
Cartridges may be mounted horizontally or vertically, depending on the application and equipment. Some cartridge units have a handful of cartridge filters, while large industrial applications may have dust collectors with over a hundred cartridges.
Cleaning Cycles
The majority of cartridge dust collectors use pulse jet cleaning cycles to remove particulate from the outside of the filters. Compressed air travels down the length of the filter in the opposite direction of the dirty air flow, causing a ripple which dislodges the dust for collection in a hopper.
Advantages of Cartridge Dust Collectors
Cartridge dust collectors work best where the dust particulate is dry and moves freely. Cartridges are continuous cleaning, meaning low downtime, the filters are relatively easy to change out, and cartridge collectors are usually very energy efficient.
These dust collection systems are very versatile, and are good for many industries. Cartridge filters are very efficient for small particulate with efficiencies reaching 99.97% at 0.3 microns. A cartridge dust collector has a small footprint compared to a baghouse, and they can often be fit indoors or in compact floor plans. They need little space to have a large air filtration capacity.
Industrial Applications
Cartridge dust collection systems are ideal for many air filtration applications, including:
- Metalworking
- Plastics
- Pharmaceutical
- Food processing
- Waste and recycling
- Plasma and laser cutting
- Welding
- Minerals
Order Replacement Filters
Need to order replacement cartridge filters?
We can stock and ship filters directly to you for many of the leading dust collectors, including equipment made by:
- Donaldson-Torit
- AAF International
- US Air Filtration
- Camfil
- Mac
- A.C.T.
- Robovent
- Nederman
Cartridge Filters are Used in many applications such as:
- Bulk powder processing
- Laser & plasma cutting
- Chemical Processing
- Blast cleaning booths
- Welding
- Paint Booths
- Grinding
Cartridge Dust Collectors for All Applications
If your industrial workplace needs the power and air filtration power that cartridge collectors offer, the team at Aircoast Industrial Solutions is here to help you. Contact us to discuss your specific challenges, and we will design a custom solution that provides clean air for your facility.
